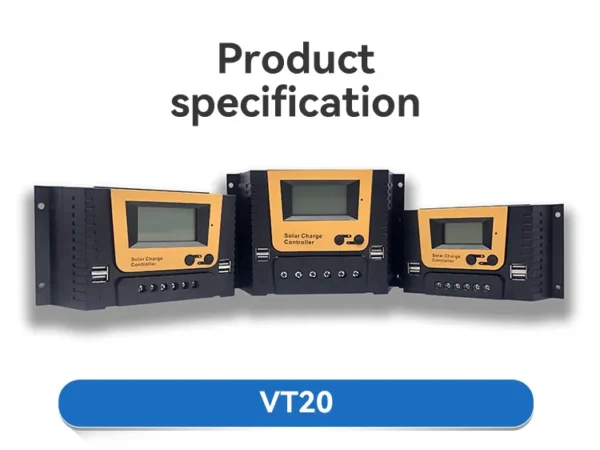

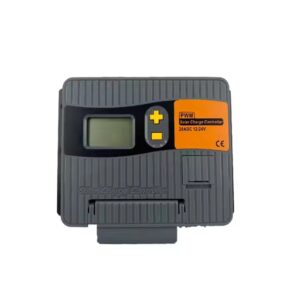

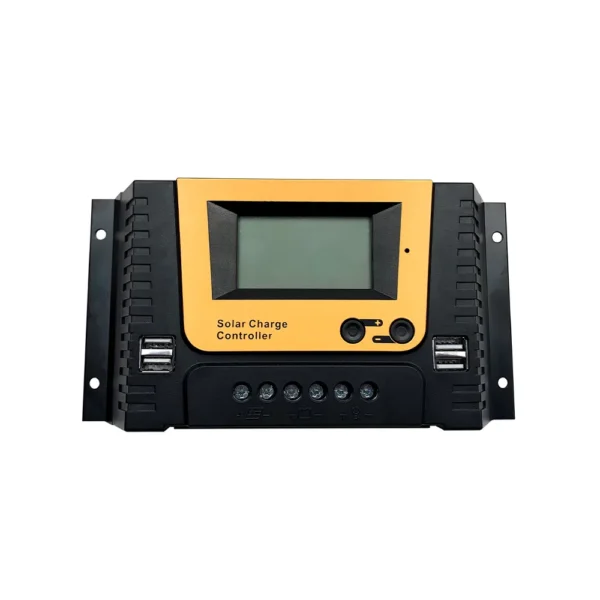

10A-80A Solar Charger Pwm Charging PWM Charger Controller 12V 24V 36V 48V

A PWM (Pulse Width Modulation) solar charge controller typically features:

Battery Charging Regulation: Efficiently regulates the charging process with multiple stages (bulk, absorption, float) to prevent overcharging.
Load Control: Allows direct connection of DC loads, providing over-discharge protection by disconnecting loads when battery voltage is low.
Protection Features: Includes overcharge, over-discharge, short circuit, reverse polarity, and over-temperature protections to ensure system safety.
Temperature Compensation: Adjusts charging parameters based on ambient temperature to optimize battery performance and lifespan.
Display and Indicators: Equipped with an LCD or LED display for real-time monitoring of system status, including charging, battery voltage, and load status.

Additional information

Power	10A 20A 30A 40A 50A 60A 70A 80A
Type	PWM
Rated Voltage	12V/24V/48V auto
Maximum Solar Input Voltage	Normally 100V to 150V for 12V/24V systems and higher for 48V systems
Battery type	Lead-acid (Flooded, AGM, Gel), Lithium-ion, LiFePO4
Charging Stages	Bulk, Absorption, Float
Load Control	Load output terminals for direct DC loads
Protection Features	Overcharge protection Over-discharge protection Reverse polarity protection Short circuit protection Over-temperature protection
